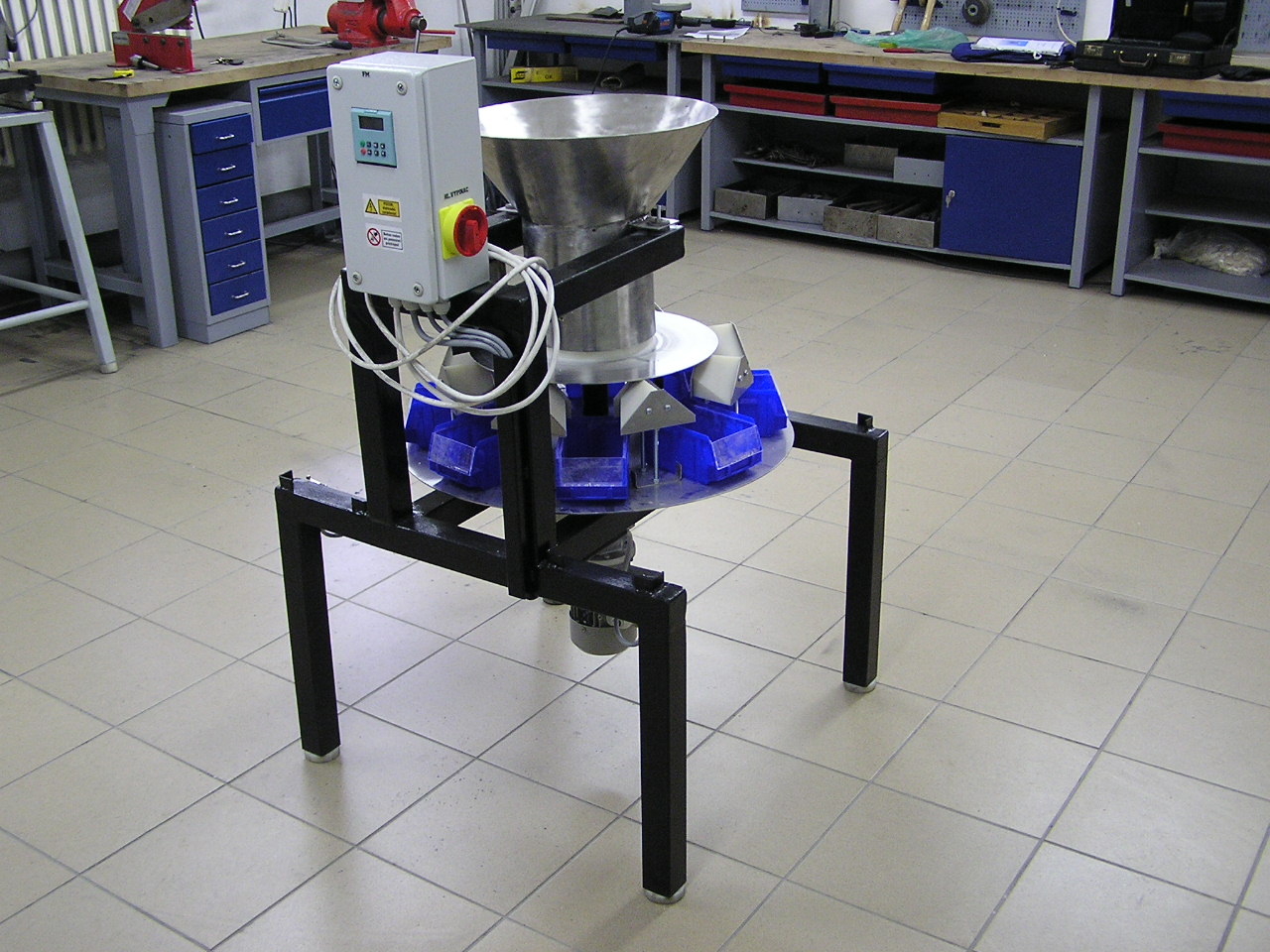

ROTARY SAMPLER RV-01
Description:
- - the most accurate method of extracting representative samples from dry granular or powdered material into lumpiness 10 mm
- - material is passed through a materials hopper to the samplers workspace
- - top and bottom disc rotate in the samplers workspace
- - the bottom disc contains 8 sample containers, where split material falls from the top disc into
| Technical specifications RV-01 | |

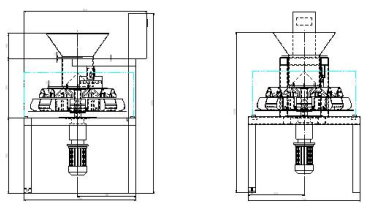

| Dimension | hight -1220 mm, width – 740 mm, length – 810 mm |
| Input hopper | average = 200 mm |
| Max size of input material | 0 – 10 mm |
| Injection volume | max quantity of input material 8 litres/ |
| Shaft speed | 0 – 12 r/min |
| Electromotor | 0,12 kW/1350 r/min |
| Noisiness | less than 85 dB |
| Weight | 67 kg |
